Low Hanging Tri Proof Linear Lighting Industrial Light Fixture HRZM-G-6110

Low Hanging Tri Proof Linear Lighting Industrial Light Fixture HRZM-G-6110

Get A Quote +

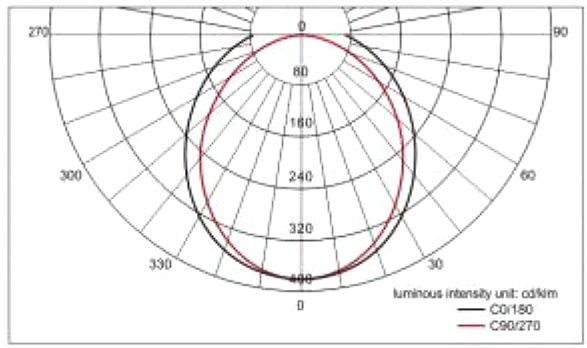

Technical Data Distribution Curve Flux Dimension &Installation Drawings Ordering Information
Application:
● Applicable to the lighting of parking lot, corridor, maintenance platform, vehicle maintenance area and other places.

Product introduction:
● The lamp body adopts injection molding PC, which is safe and reliable.
● LED light source is selected, with high color rendering, small light attenuation and no flicker.
● The lamp has scientific light distribution and anti glare design, with soft and uniform light.
● Scientific heat dissipation mode is conducive to the stability of LED light source and electrical components.
● Scientific sealing structure design, with good performance.

Rated voltage

 AC100 ~ 220V

LED

 18W、36W

Cable specification

 Ф10-Ф14mm

Protection class

 IP65

Anti corrosion grade

 WF2

Weight

 0.7kg(18W)

 1kg(36W)

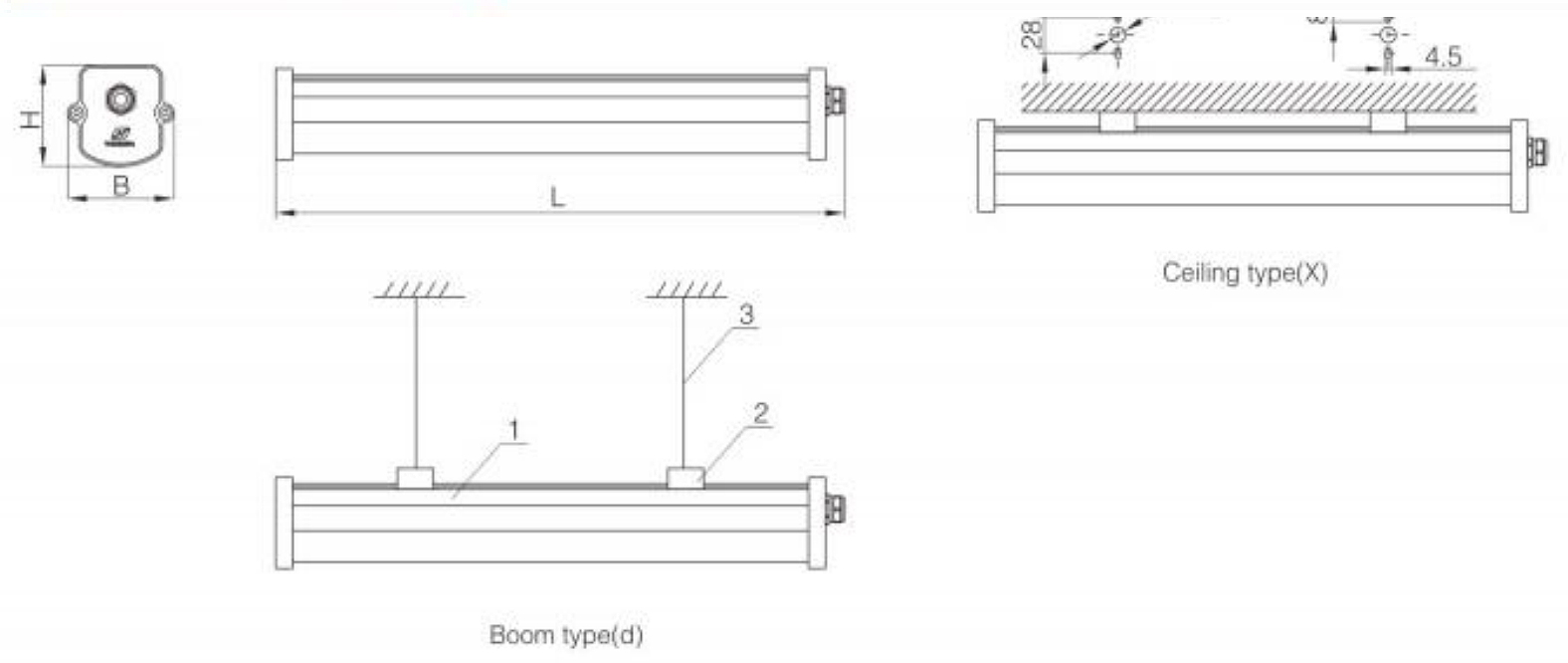

Type

L

B

H

HR2M-G-6110-XL18

680

83

78

HRZM-G-6110-XL18L

1280

HR2M-G-6110-XL36

1280


No.

Name

Quantity

1

Fixed luminaires for LED modules

1

2

Mounting bracket

2

3

Wirerope

2

Ordering code

Power(W)

Illuminant

CT(K)

Luminous flux(lm)

Average life of illuminant(h)

HRZM-G-6110-XL18

18

LED

5000

2000

30000

HRZM-G-6110-XL18L

HRZM-G-6110-XL36

36

4000

Note:
● With emergency function, the emergency time is 90min.
