Waterproof LOW Bay Light GC203-XL II

Waterproof LOW Bay Light GC203-XL II

Get A Quote +

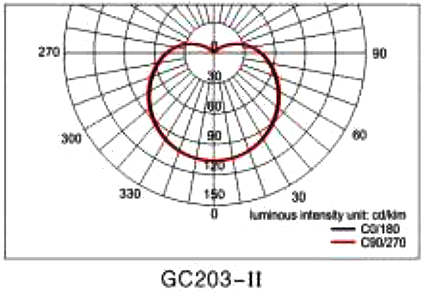

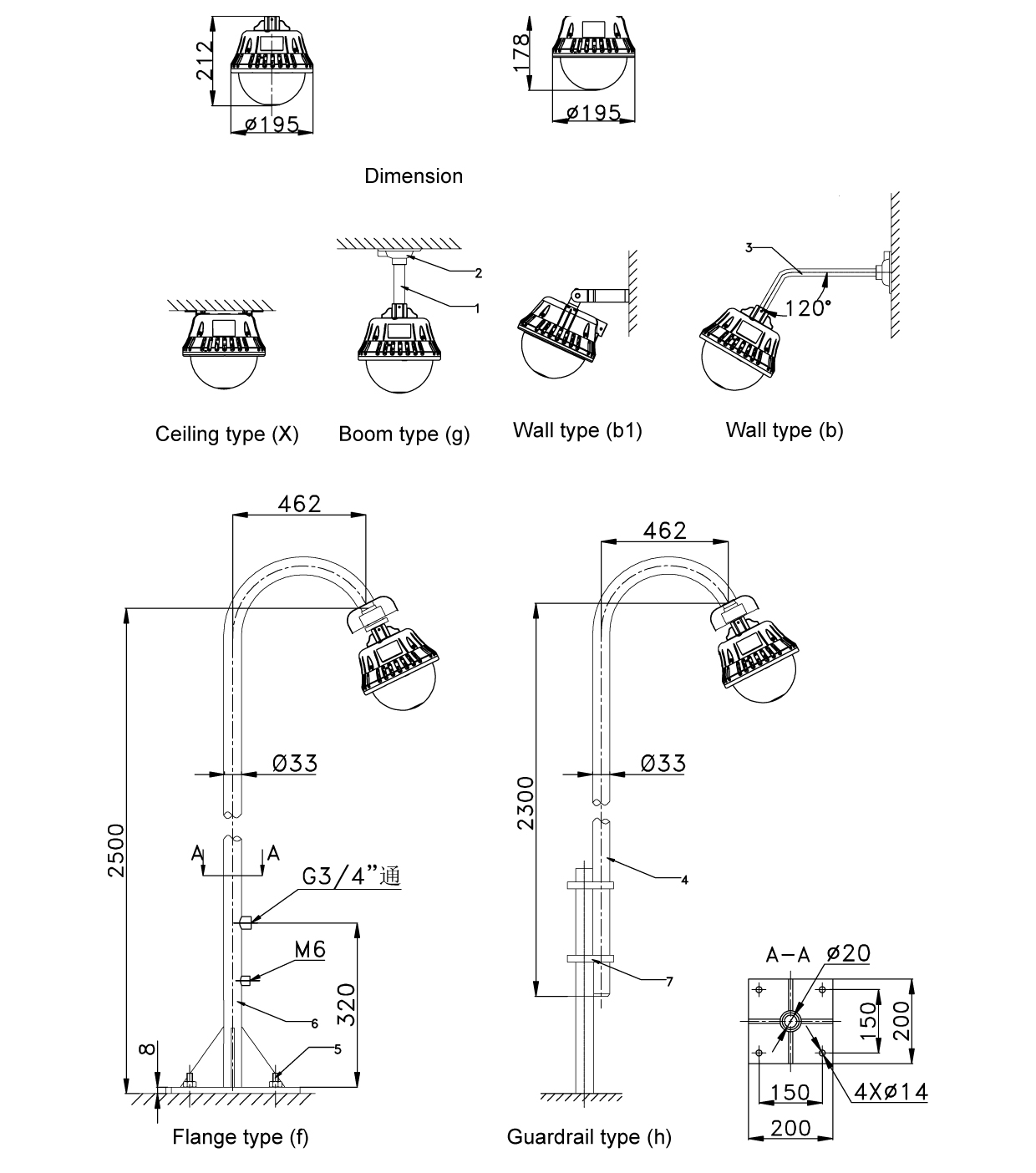

Technical Data Distribution Curve Flux Dimension &Installation Drawings Ordering Information
Application:
● Applicable to the lighting of distribution room, main power house, water pump room, corridor trestle and other places.

Product introduction:
● The shell is made of aluminum alloy die casting with high strength; High voltage electrostatic powder spraying treatment on the surface, corrosion resistance.
● LED light source is selected, with high color rendering, small light attenuation and no flicker.
● The lamp has scientific light distribution and anti glare design, with soft and uniform light.
● Scientific heat dissipation method can benefit the stability of LED light source and electrical components.
● Scientific sealing structure design, with good performance.
● The screw free patch terminal is connected with the wire. When replacing the light source, pull out the wire on the light source board to facilitate the replacement of the light source.

Rated voltage

 AC100 ~ 220V

 AC/DC24 ~ 36V

LED

 36W、50W

Cable specification

 Ф10~Ф14mm

Protection class

 IP65

Anti corrosion grade

 WF2

Weight

 2.3kg




No.

Name

Quantity

Remarks

1

Install suction cups G3/4" G3/4"

1



2

Boom G3/4"

1

100mm

3

60° elbow G3/4"

1



4

Guardrail pole

1



5

Anchor bolt M12

4

User owned

6

Flange pole

1



7

U-bolt

2



Ordering code

Power(W)

illuminant

CT(K)

Luminous flux(lm)

Average life of illuminant(h)

GC203-XL36IIA

36

LED

5000

4320

50000

GC203-XL36IIB

GC203-XL50IIA

50

6000

GC203-XL50IIB

GC203-XL60IIA

60

7200

GC203-XL60IIB

GC203-XL36IIA-C

36

4320

GC203-XL361IB-C

GC203-XL50IIA-C

50

6000

GC203-XL50IIB-C

Note:
● Suffix A indicates that the voltage is: AC220V, No marking is required;

● Suffix B indicates that the voltage is: AC/DC24-36V.

● The conventional factory configuration 8 suspender installation. It other installation methods are required, please indicate when ordering.

● GC203-11-Cindicates that the lamp is a transparent shade.

● In case of emergency, add "J" after the order number.

● Ceiling type (x) and wall type (B1) cannot meet the integrated emergency function.
