Fixed Explosion-proof Lamps

Home / Products / Industrial Lighting / Fixed Explosion-proof Lamps / Explosion Proof Solid State Lighting Lamp RLEEXL6120

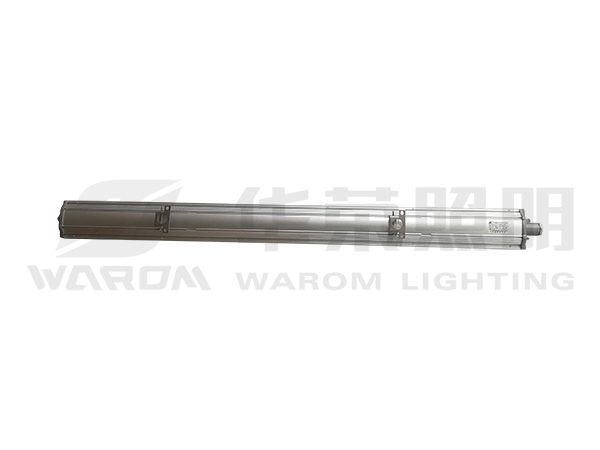

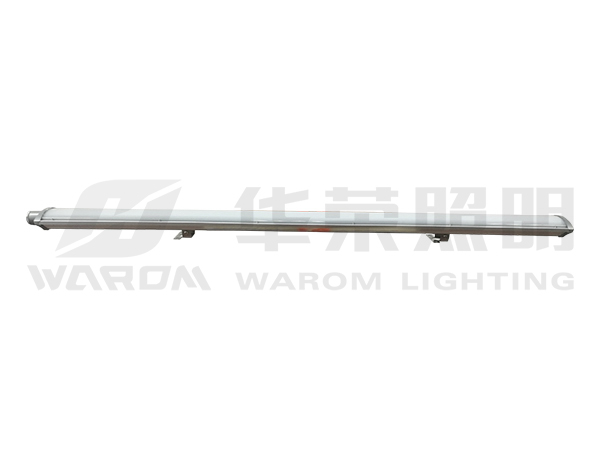

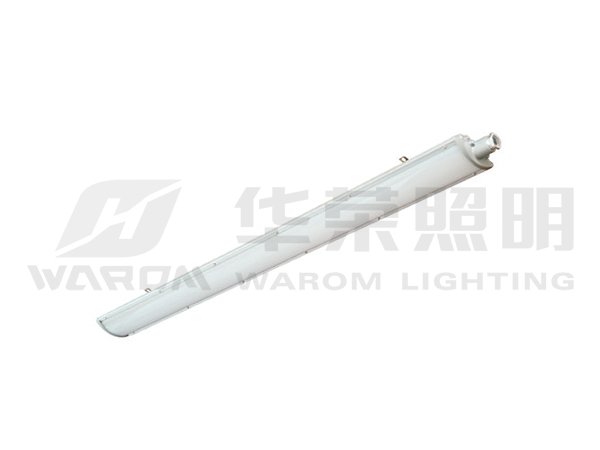

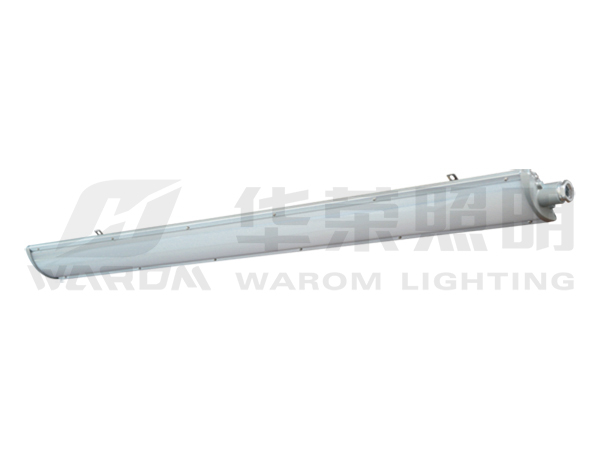

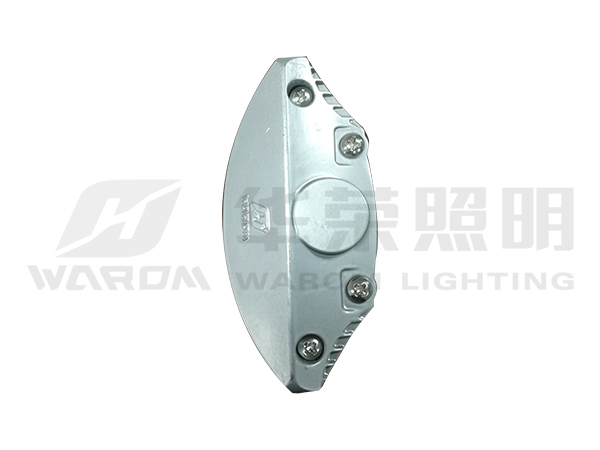

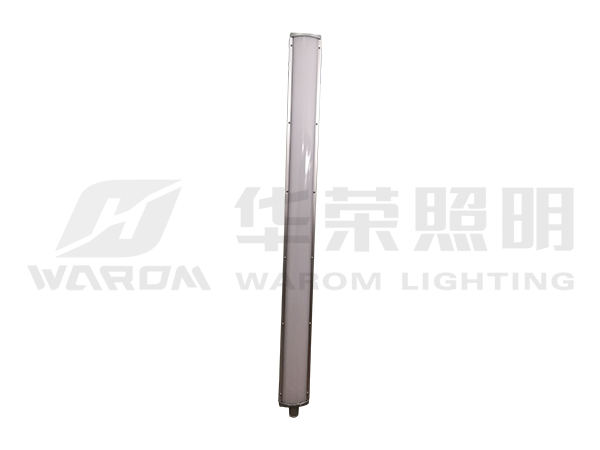

Explosion Proof Solid State Lighting Lamp RLEEXL6120

Explosion Proof Solid State Lighting Lamp RLEEXL6120

Get A Quote +

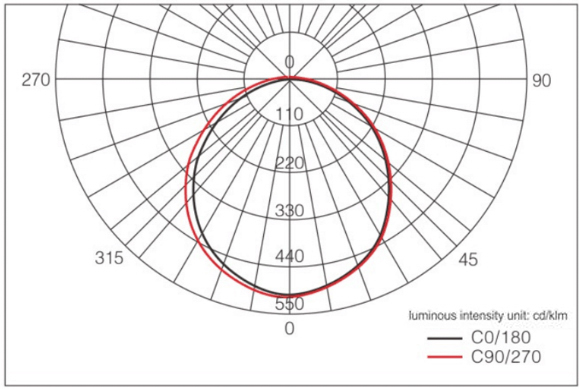

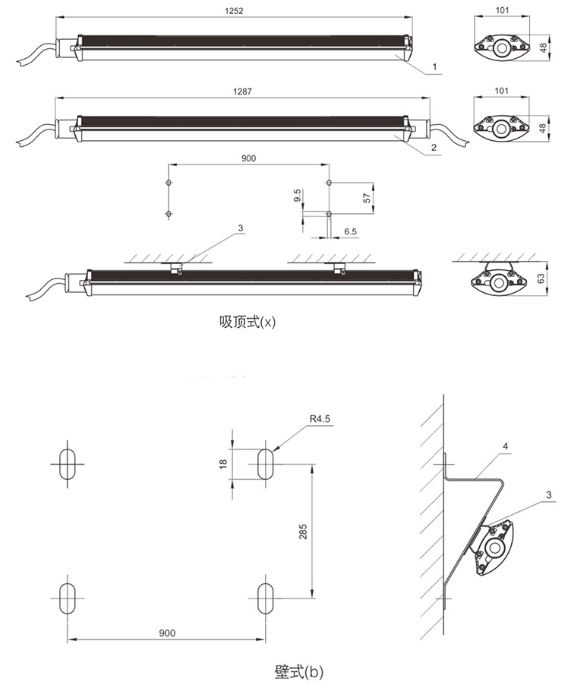

Technical Data Distribution Curve Flux Dimension &Installation Drawings Ordering Information
Applications:
● Applicable to areas with explosive gas in oil exploration, metallurgy and other enterprises.
● Applicable to hazardous areas of Zone 1 and Zone 2 in explosive gas atmospheres.
● Applicable to places with IIA, IIB, and IIC explosive gas atmospheres.
● Applicable to areas 21 and 22 in combustible dust environment.
● Suitable for places containing corrosive gas.
● Suitable for places with high humidity and protection requirements.
Product Features:
● The shell is made of aluminum profile with high strength; the surface is sandblasted and oxidized for corrosion resistance.
● Adopt LED light source with high luminous efficiency, high color rendering and low light attenuation.
● It adopts a double-cavity one-piece structure, which is convenient for on-site installation and maintenance, and simplifies on-site wiring.
● Scientific light distribution design, suitable for large-area work and scene lighting.
● Scientifically designed heat dissipation method, good heat dissipation performance.
● The lamps are equipped with overheating and short circuit protection functions.
● The scientific sealing structure design and the embedding method of the sealing strip have good performance.

Rated voltage

AC220V 50Hz

AC/DC18-48V

Power supply

LEDs (18W, 36W)

Cable Specifications

Ф10-Ф14mm

Explosion-proof mark

Ex nA mb llC T5 Gc

Ex tD A21 IP65 T95°C

Executive standard

GB3836.1, GB3836.8, GB3836.9, GB 12476.1, GB12476.5

Dimensions

101 x 48 x 670mm (18W)

101 x 48 x 1252mm (36W)

Degree of protection

IP65

weight

1.7kg (18W)

2.6kg (36W)



Power (W)

A(mm)

B(mm)

C(mm)

18

670

705

360

36

1252

1287

900


name

quantity

Lamps (single-ended incoming line)

1

Lamps (double-ended incoming line)

1

Mount

2

Mounting bracket

2

order number

Power (W)

light source

color temperature(K)

Luminous flux (lm)

Average light source life (h)

RLEEXL6120-XL18A-I

18

led

5000

2160

50000

RLEEXL6120-XL18B-I

RLEEXL6120-XL18A-II

RLEEXL6120-XL18B-II

RLEEXL6120-XL36A-I

36

4320

RLEEXL6120-XL36B-I

RLEEXL6120-XL36A-II

RLEEXL6120-XL36B-II


Note:
● The suffix A indicates that the input voltage is AC220V, which can be omitted.
● The suffix B indicates that the input voltage is AC/DC18-48V.
● The suffix I indicates single-ended incoming line, which can be left unmarked.
● The suffix II indicates double-ended incoming line.
