Explosion Proof Solid State Lighting Lamp RLEEXL608

Explosion Proof Solid State Lighting Lamp RLEEXL608

Get A Quote +

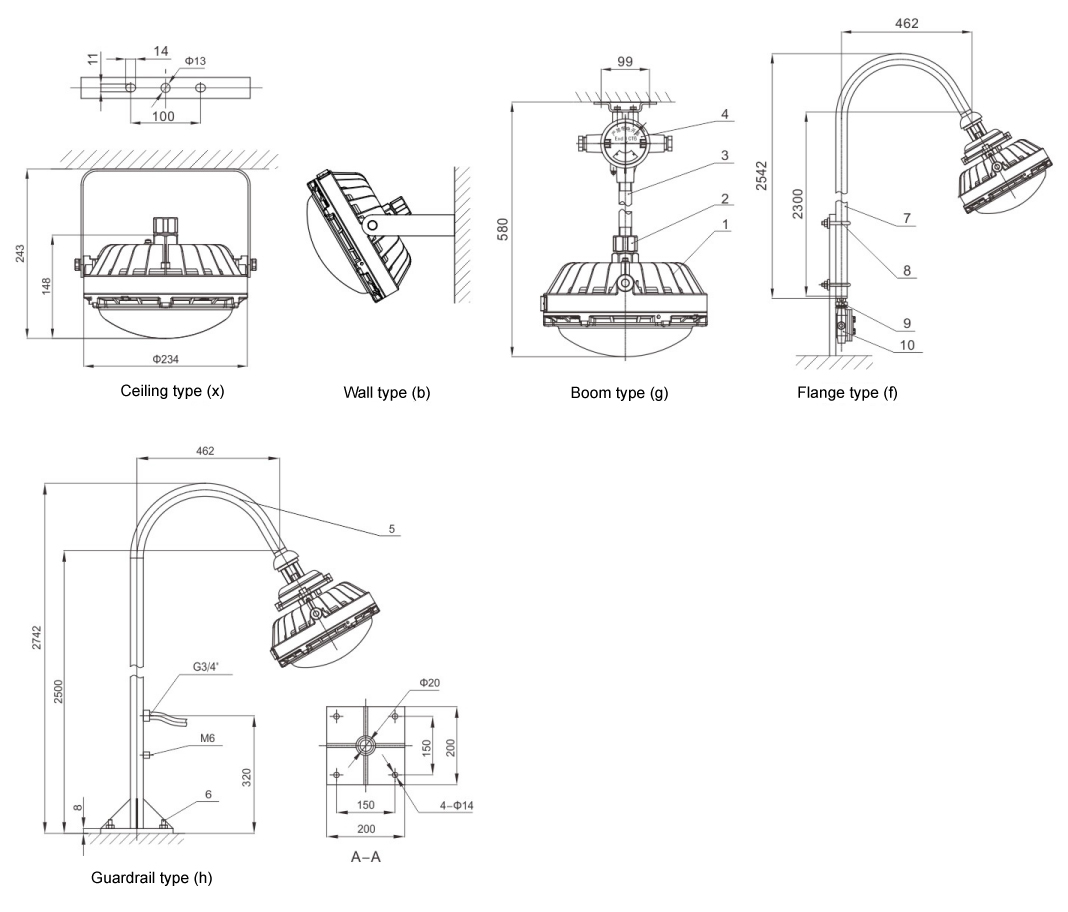

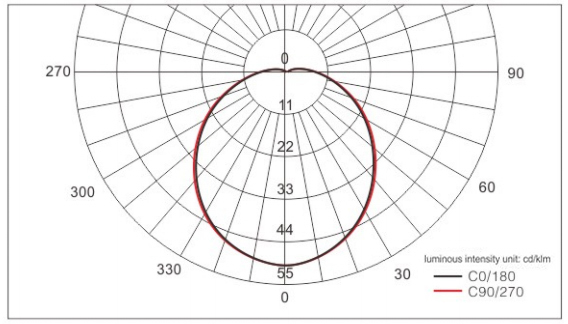

Technical Data Distribution Curve Flux Dimension &Installation Drawings Ordering Information
Applications:
● Applicable to areas with explosive gas in oil exploration, metallurgy and other enterprises.
● Applicable to hazardous areas of Zone 1 and Zone 2 in explosive gas atmospheres.
● Applicable to places with IIA, IIB, II C explosive gas atmospheres.
● Applicable to areas 21 and 22 in combustible dust environment.
● Suitable for places containing corrosive gas.
● Suitable for places with high humidity and protection requirements.

Product Features:
● The shell is made of aluminum alloy die-casting, with high strength; the surface is treated with high-voltage electrostatic powder spraying, which is corrosion-resistant.
● LED light source is selected, with high color rendering, low light decay and no flicker.
● The lamp adopts scientific light distribution and anti-glare design, which has a comfortable and uniform light output effect.
● Large-area fins are used to dissipate heat to improve the service life and stability of the light source.
● It adopts thread explosion-proof, plane explosion-proof and cylinder explosion-proof structure, and the explosion-proof performance is reliable.
● Scientific sealing structure design and sealing strip embedding method have good performance.

Rated voltage

AC220V

led

50W 100W

Cable Specifications

Ф10-Ф14mm

Executive standard

GB3836.1, GB3836.2, GB12476.1

Explosion-proof mark

Ex d IIC T5/T6 Gb

Ex tD A21 IP66 T95°C/T80°C

Degree of protection

IP66

Anti-corrosion grade

WF2

Dimensions

Ф234 x 173mm (boom type)

Ф234 x 243mm (ceiling type)

Ф234 x 230mm (flange type/guardrail type)

weight

3.3kg (boom type)

3.6kg (flange)



serial number

name

quantity

Remark

1

lamps

1

2

Compression nut

1

3

Boom G3/4"

1

300mm

4

Explosion-proof chandelier box BHD52-G3/4"(IIC)

1

5

Flange light pole

1

6

Anchor bolt M12

4

7

Guardrail Light Pole

1

8

U-bolt

2

1 1/4"

9

Explosion-proof pipe joint BGJ-G3/4"/G3/4"

1

10

Explosion-proof junction box BHD51 -G3/4"(IIC)

1

Order number

Power (W)

Light source

Color temperature(K)

Luminous flux (lm)

Average light source life (h)

RLEEXL608-XL50

50

led

5000

6000

30000

RLEEXL608-XL100

100

12000

Note:
● The normal configuration is hanger installation, if other installation methods are required, please specify when ordering.
● Lights usually leave the factory without installation accessories. If necessary, please specify when ordering.
